Replacement Parts
PLUG SAFETY
Always check the plug's maximum back pressure capability before using.
View More Safety Information
Need to Purchase a Replacement Part?
We offer replacement parts for test pumps and equipment. Use the reference diagrams below to help locate your part.
Need Help Ordering Parts?

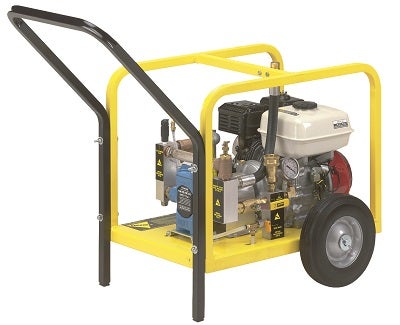

Hydrostastic Test Pumps
Download the Schematic Guides
Aqua-Loc Hydrotastic Test Pumps Parts Key
Air-Loc® Joint Tester Replacement Parts
| 010048 | Control Panel - Complete |
| 026358 | 0-10 PSI 4 in. Dial Test Presure Gauge with Retarded Increments to 30 PSI |
| 087602 | 0-60 PSI Gauge 4 in. Dial |
| 014838 | 0-100 SI Gauge 2 in . Dial |
| 007892 | Three Way Valve |
| 296643 | Regulator |
| 013008 | 12 ft. Triple Hose: Panel to Tester |
| 086363 | 21 in. - 36 in. Wheel Bar Assembly (2 Required) |
| 067008 | 39 in. - 54 in. Wheel Bar Assembly (2 Required) |
| 093661 | 60 in. - 90 in. Wheel Bar Assembly (2 Required) |
| 024358 | 96 and Greater Wheel Bar Assembly (2 Required) |
| 010628 | 27 in. - 54 in. Frame Gasket |
| 010638 | 60 in. - 120 in. Frame Gasket |
Air-Loc® Plate Style Manhole Tester
| 033018 | 32 in. Replacement Pad Kit |
| 033028 | 38 in. Replacement Pad Kit |
| 023748 | 44 in. Replacement Pad Kit |
| 055348 | 20 ft. Gauge and Hose Assembly |
| 304058 | 0-30 Hg. Gauge 3.5 in. Dial Test Pressure Gauge |
Air-Loc® Bladder Style Manhole Tester
| 098485 | 24 in. Replacement Bladder |
| 008404 | 26 in. Replacement Bladder |
| 060678 | 29 in. Replacement Bladder |
| 099406 | 30 in. Replacement Bladder |
| 063339 | 32 in. Replacement Bladder |
| 063541 | 36 in Replacement Bladder |
| 055348 | Replacement Hose and Gauge Assembly 20 ft. |
| 304058 | Replacement 0-30 Hg. 3.5 in. Dial Test Pressure Gauge |
| 251372 | Replacement 0-60 PSI 2 in. Dial Test Pressure Gauge |
Air-Loc® Vacuum Pump
| 019501OA | Replacement Pump Assembly |
| 015823 | Replacement Filter |
| 019321 | Replacement Pump Veins, 4 Required |
| 107379 | Replacement Metal Jar for Line Filter |
| 278098 | Replacement Vacuum Pump Assembly, Exhaust |
| 278108 | Replacement Vacuum Pump Assembly, Intake |
Air-Loc® Vacuum Generators
| 033868 | Replacement Silencer for Vacuum Generator 460 |
| 035248 | Replacement Filter for 460 Generator |
| 054268 | Replacement Silencer for Vacuum Generator 600 |
Line Stringer / Ventilator
| 014714OA | Replacement Fan: Line Stringer / Ventilator (Right pitch) |
| 035318 | Replacement Foam Pad Kit for Fan |
Ring and Chain Assemblies for Plumbing Test Balls
| 059708 | 2 In. Ring with 12 In. Chain |
| 059718 | 3 In. Ring with 12 In. Chain |
| 059728 | 4 In. Ring with 12 In. Chain |
| 059748 | 6 In. Ring with 12 In. Chain |
| 059758 | 2 In. Ring with 24 In. Chain |
| 059768 | 3 In. Ring with 24 In. Chain |
| 059778 | 4 In. Ring with 24 In. Chain |
| 059798 | 6 In. Ring with 24 In. Chain |
Parts / Fittings
| 017914 | Red Disc marker |
| 017922 | Blue Disc marker |
| 017930 | Yellow Disc marker |
| 045668 | Hi-Flow® Blue Disc marker |
| 028578 | 3/4" MNPT Plug with 1/4" Taps (2) |
| 112690 | 1 1/2" MNPT Plug with 1/4" Taps (2) |
| 300276 | 2" MNPT Plug with 1/4" Taps (2) |
| 078751 | 3" MNPT ABS Plug with 1/2" and 1/4" Taps (2) |
| 112720 | 4" MNPT Plug with 1/4" Taps (2) |
| 019538 | 2" FNPT cap with 1/4" Taps (2) 1 |
| 065676 | 2 1/2" FNPT cap with 1/4" Taps (2) |
| 085758 | 4" FNPT cap with 1/4" Taps (2) |
| 008323 | 2 1/2" FNPT cap with 1/4" Tap & 3/4" Tap |
| 041838 | 2 1/2" FNPT cap with 1/2" Tap & 3/4" Tap |
| 041848 | 4" FNPT cap with 1/2" Tap & 1/4" Tap |
| 041808 | 2" FNPT cap with 1/2" Tap & 1/4" Tap |
| 251607 | 1/4" MNPT brass Plug 50 |
| 277037 | 1/4" MNPT Schrader Tire Valve Inflation Fitting |
| 068527 | 1/8" MNPT Schrader Tire Valve Inflation Fitting |
| 071468 | 1/4" Male Quick Disconnect x 1/8" MNPT |
| 003093 | 1/4" Female Quick Disconnect x 3/8" Hose Barb |
| 302112 | 1/4" Female Quick Disconnect x 1/4" MNPT |
| 251623 | 1/4" Male Quick Disconnect x 1/4" MNPT |
| 026708 | 1/2" Female Quick Disconnect x 1/2" FNPT |
| 042068 | 1/2" Male Quick Disconnect x 1/2" MNPT |
| 251666 | Swivel Ball – 3/8" F x 3/8" Hose Barb |
| 251615 | Swivel Ball – 3/8" M x 1/4" MNPT |
| 101478 | 3/4" MNPT x 2" Crows Foot Lug Coupling |
| 007518 | 1/2" MNPT x 2" Crows Foot Lug Coupling |
| 041610 | 3/8" x 16 Eyebolt |
